This example walks through building a complete site research toolkit: pull Streetview imagery for any address, analyse it with an agent, generate immersive 3D environments with Marble, and publish it all as a reusable tool an agent can call. You’ll also see how to plug in a third-party planning API for natural-language planning queries. Time: 25 minutes (advanced) You’ll need:

​
What you’re building

By the end of this tutorial you’ll have:
  • A custom JavaScript component that fetches Streetview images by address
  • An agent-driven analyser that summarises planning, heritage, and streetscape features from Streetview imagery
  • A Marble 3D environment built from Streetview images, viewable in Rhino
  • A reusable Places API tool that an agent can call to answer questions like “how many parks are near this address?”
  • A planning API integration for natural-language queries about a site

​
1. Set up your Streetview key

You’ll need a Google Maps API key with Streetview enabled. Create one in Google Cloud Console. In Runchat, open Account menu → Manage Secrets:
  1. Add a secret named streetview with your API key as the value
  2. Set allowed origins to: https://maps.googleapis.com
For more on Runchat secrets, see Credentials.

​
2. Build the Streetview component

The fastest way is to share the API documentation with the chat agent and let it build the component:
  1. Click + in the chat input, add the Get Website tool (fetches raw HTML for a given URL)
  2. Prompt:
Have a look at the Street View API docs at
https://developers.google.com/maps/documentation/streetview/overview
then create an HTML component that lets us specify a street address
and shows us the Street View image.

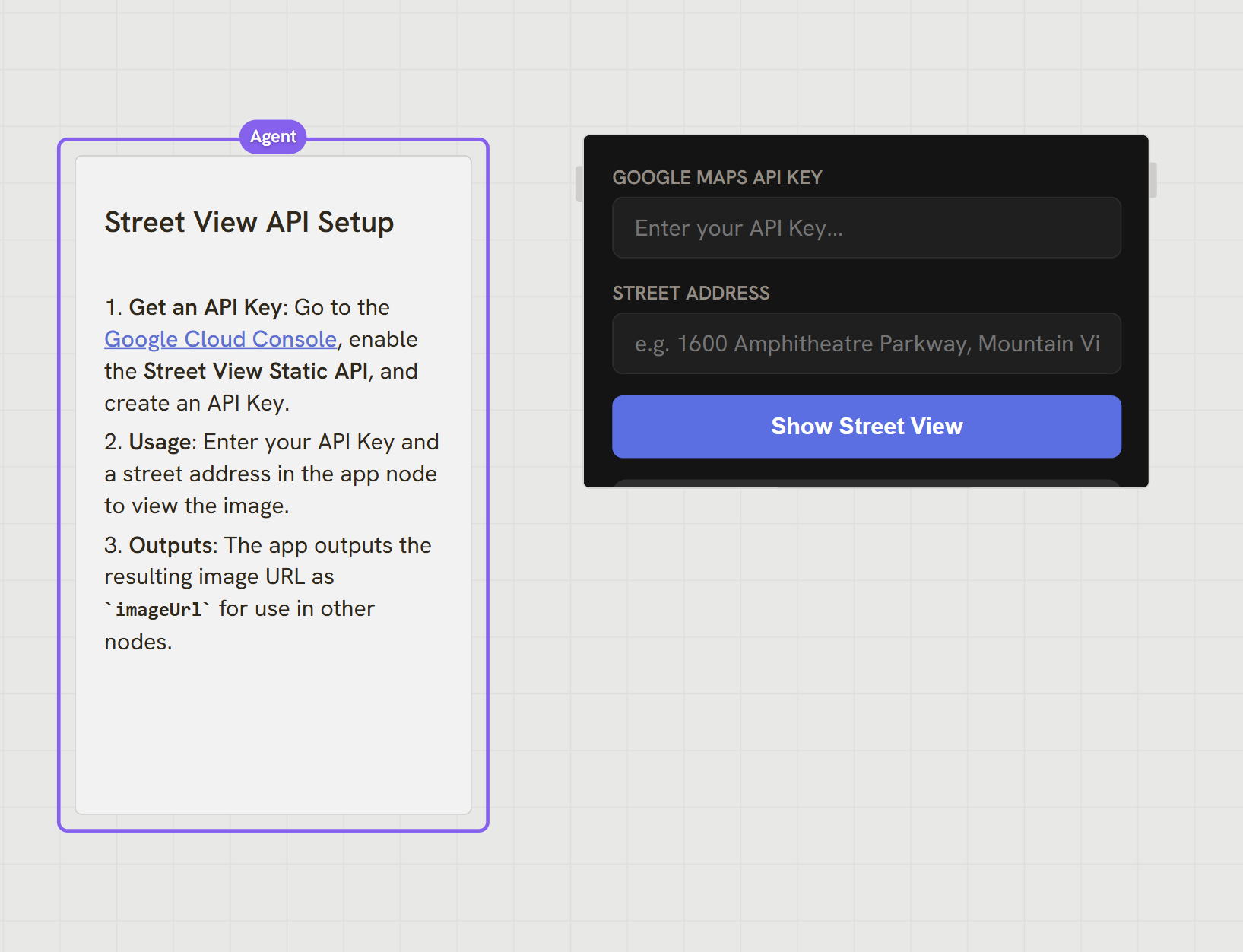

Initial Streetview component prompt
Paste your API key into the component, enter an address, and you should see a Streetview image appear:

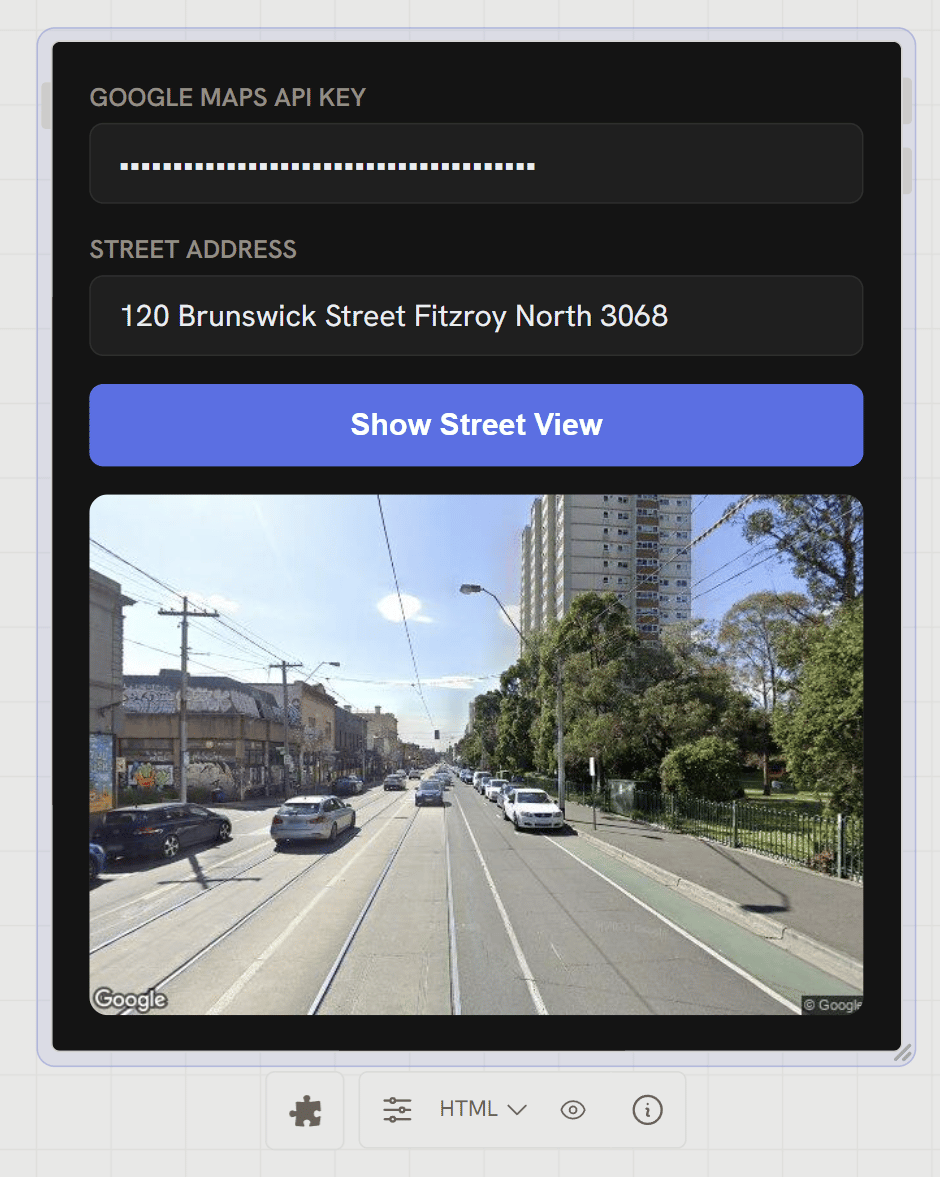

Working Streetview component with an image

​
3. Render the image locally and remove the key from output

The first version returns an image URL with the API key embedded, bad. Update the component so it fetches the image and renders it as base64:
Our Streetview node outputs a URL to the Streetview image and this
includes our API key. We don't want that. Update this node to render
the image to a canvas and return the base64 data instead.

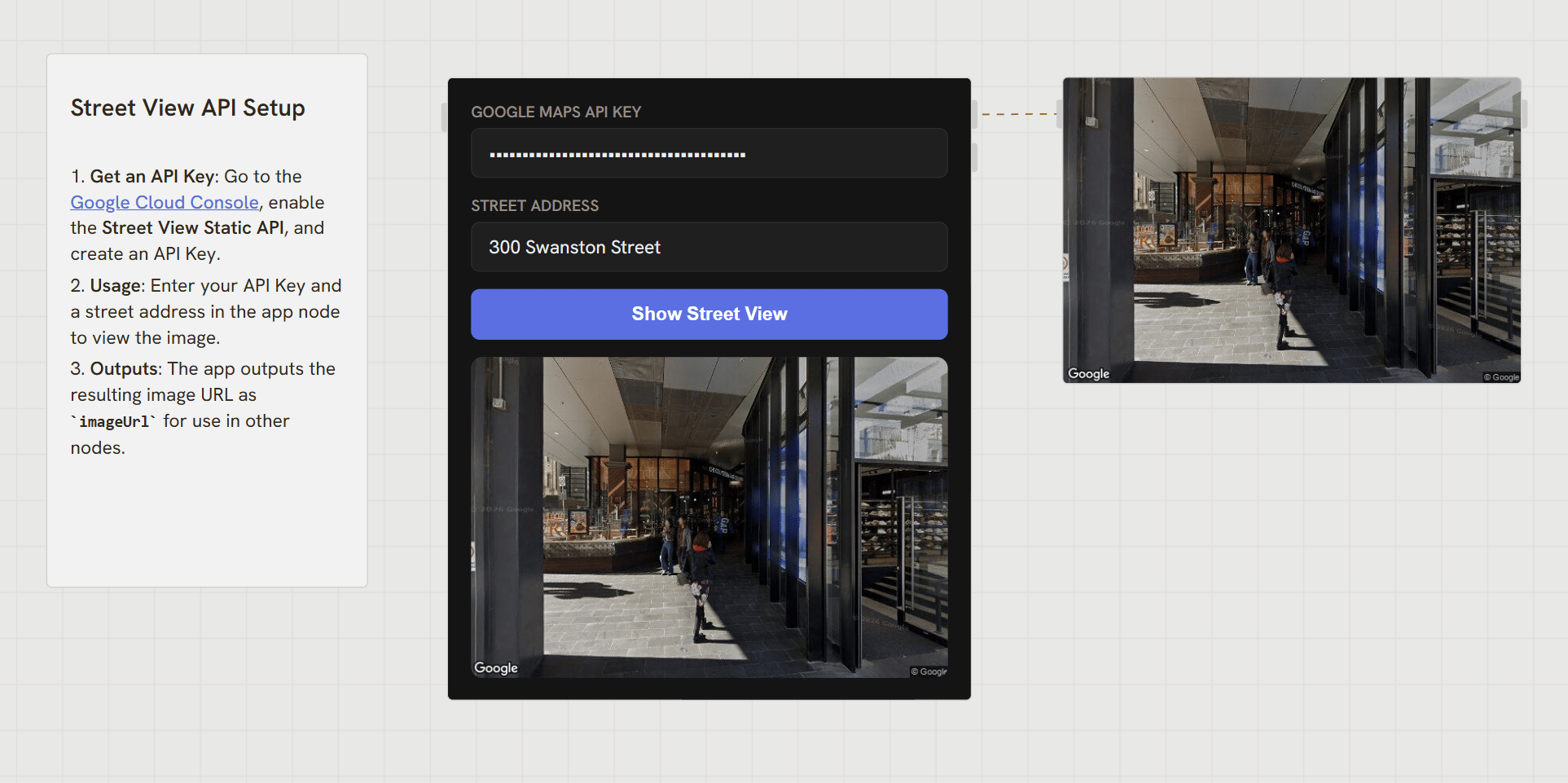

Component rendering a base64 image
Runchat automatically uploads images returned by custom components to its own storage and replaces the data with a lightweight URL, so the component output stays small.

​
4. Make the address parametric

To use this in a parametric workflow, expose the address as an input:
Add an input parameter that lets us set the address.

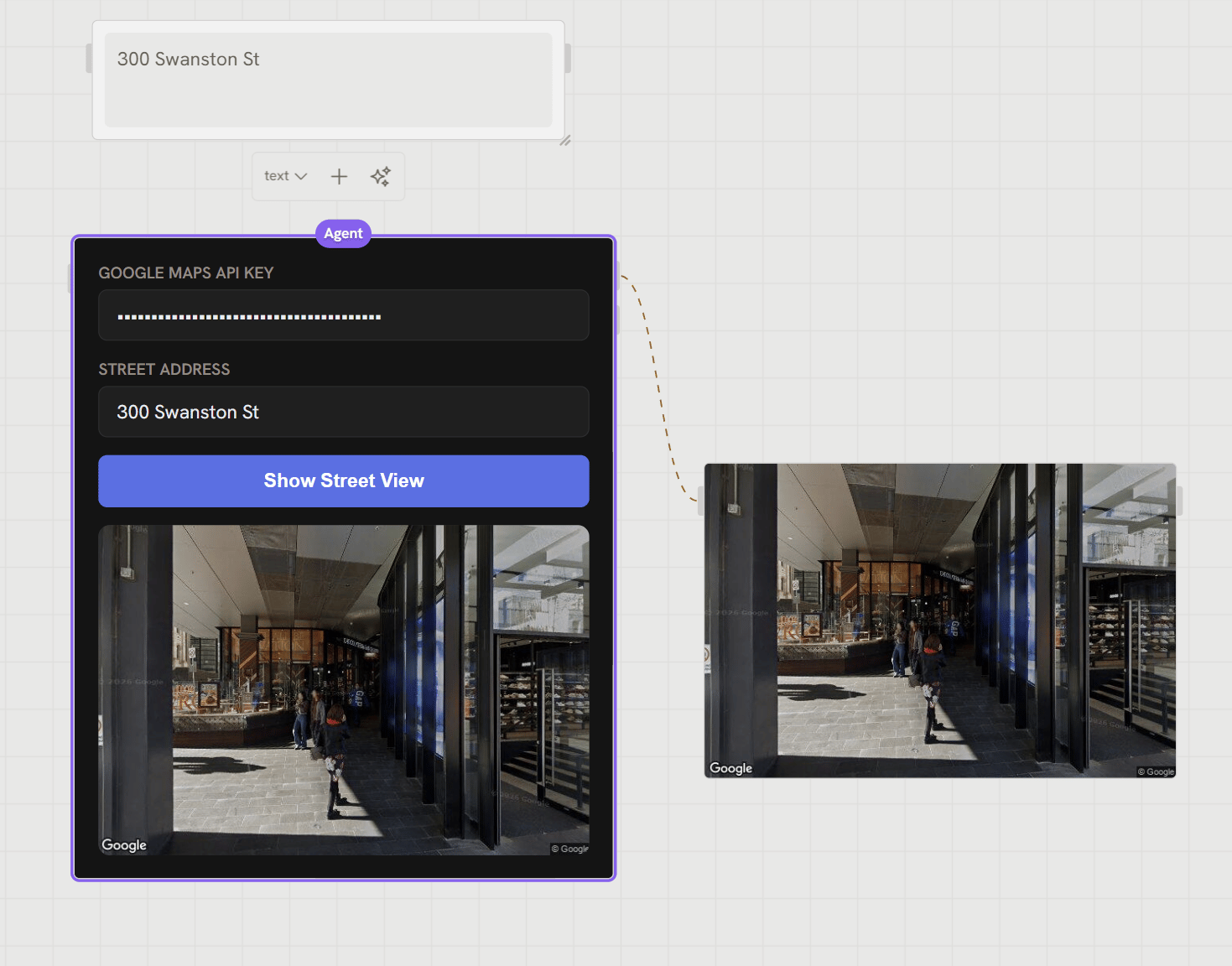

Streetview component with parametric address input
The agent will either add a real input parameter or use a template-string reference (the @ syntax). Either works.

​
5. Convert to JavaScript for tools and Grasshopper

Custom HTML components run in your browser. That’s fine for the editor, but if you want to use this as a tool with an agent, or run the workflow from Grasshopper, you need a server-side version.
Re-make this component as JavaScript that runs in our sandbox. We
should be able to fetch the Streetview image for a given address and
return it as a base64 string.
Connect your streetview credential to the new node by pressing Tab in any input field and selecting it from the credentials list. See Credentials for the full credentials pattern.

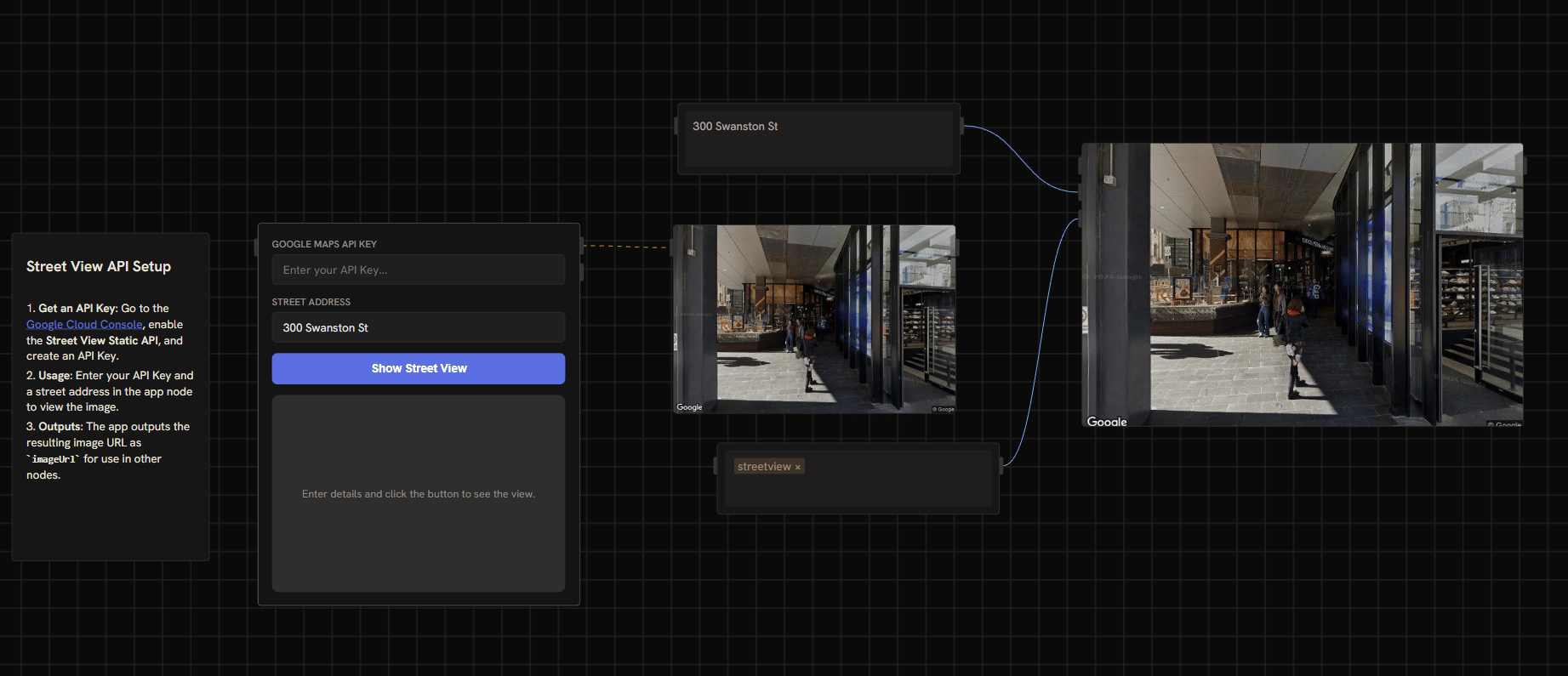

JavaScript Streetview component with credential reference

​
6. Process multiple addresses

Connect a list of addresses to the JavaScript component to fetch a Streetview image for each:

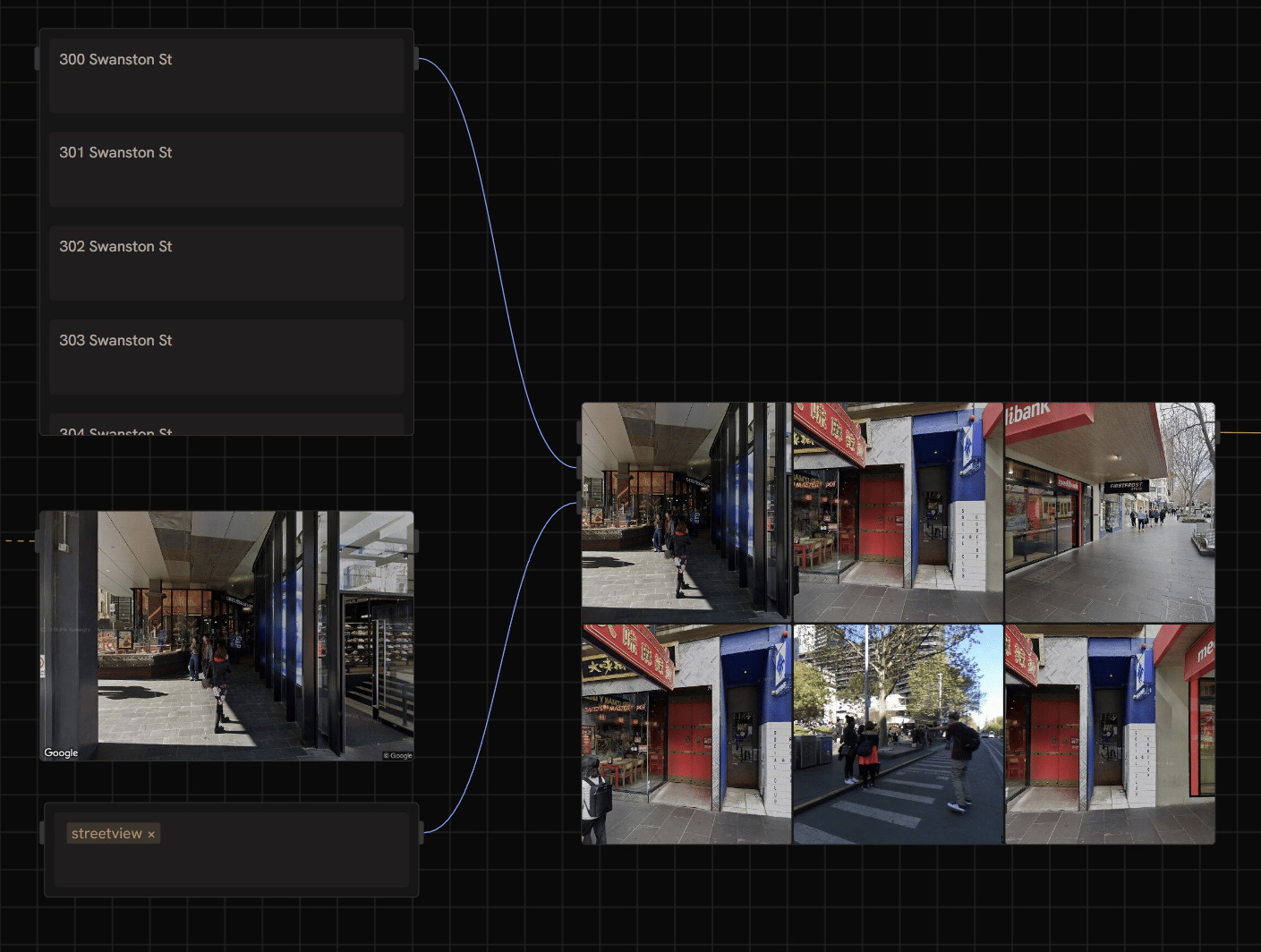

Multiple addresses being processed in parallel

​
7. Analyse images with an agent

Connect the Streetview output to an Agent node. Give it a prompt for whatever analysis you need, quantities and summaries of street planting, setbacks, heritage features, building typologies:

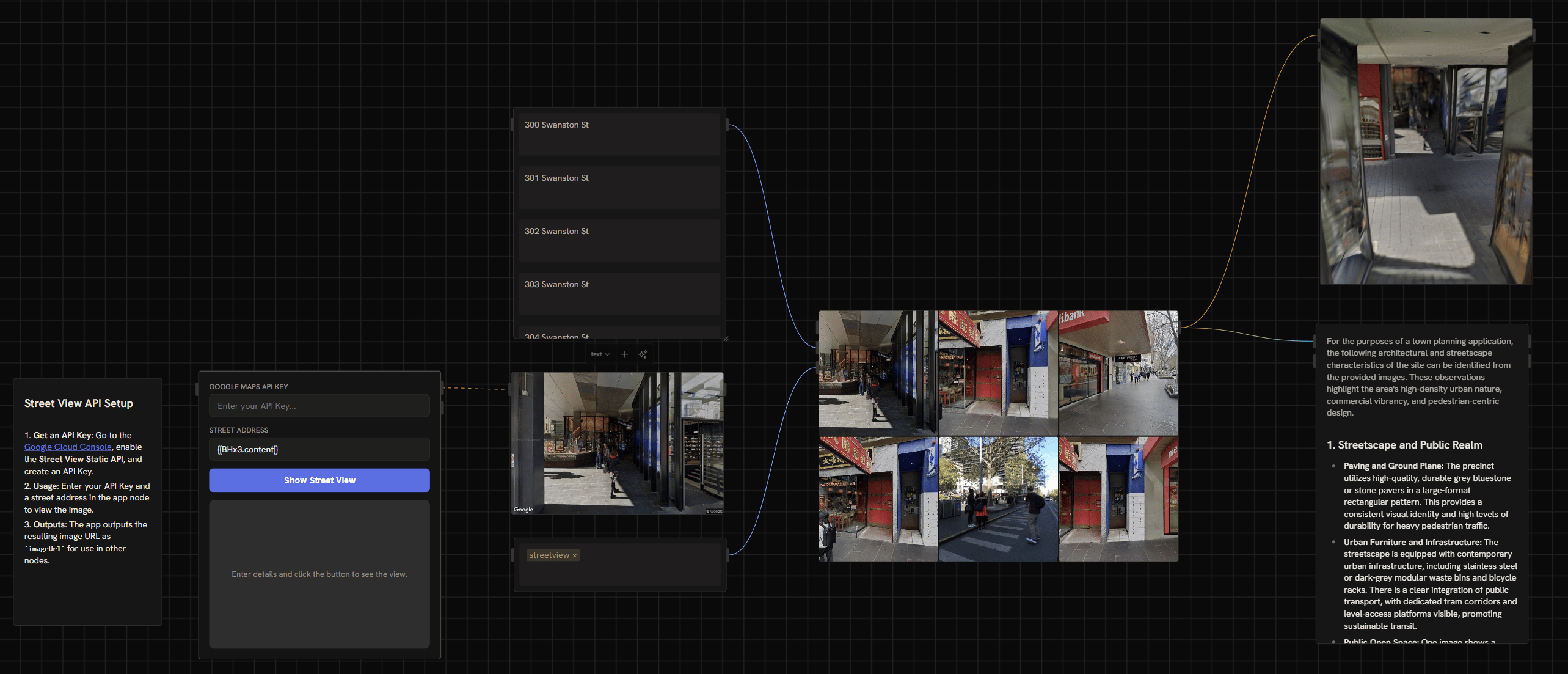

Agent analysing Streetview images

​
8. Use Streetview as a Rhino viewport background

For modelling against site context, use the agent to write a Python script that sets a Streetview image as a Rhino viewport background. In the Runchat plugin in Rhino, prompt:
Create a Python script that sets a given image as the background of a
specified Rhino viewport. Create a simple UI that lets us pick the
viewport after running the script.
If you’re using a fast model you may need to fix a few bugs. Use Opus to short-cut. Once it works, you can perspective-match to the image for modelling context:

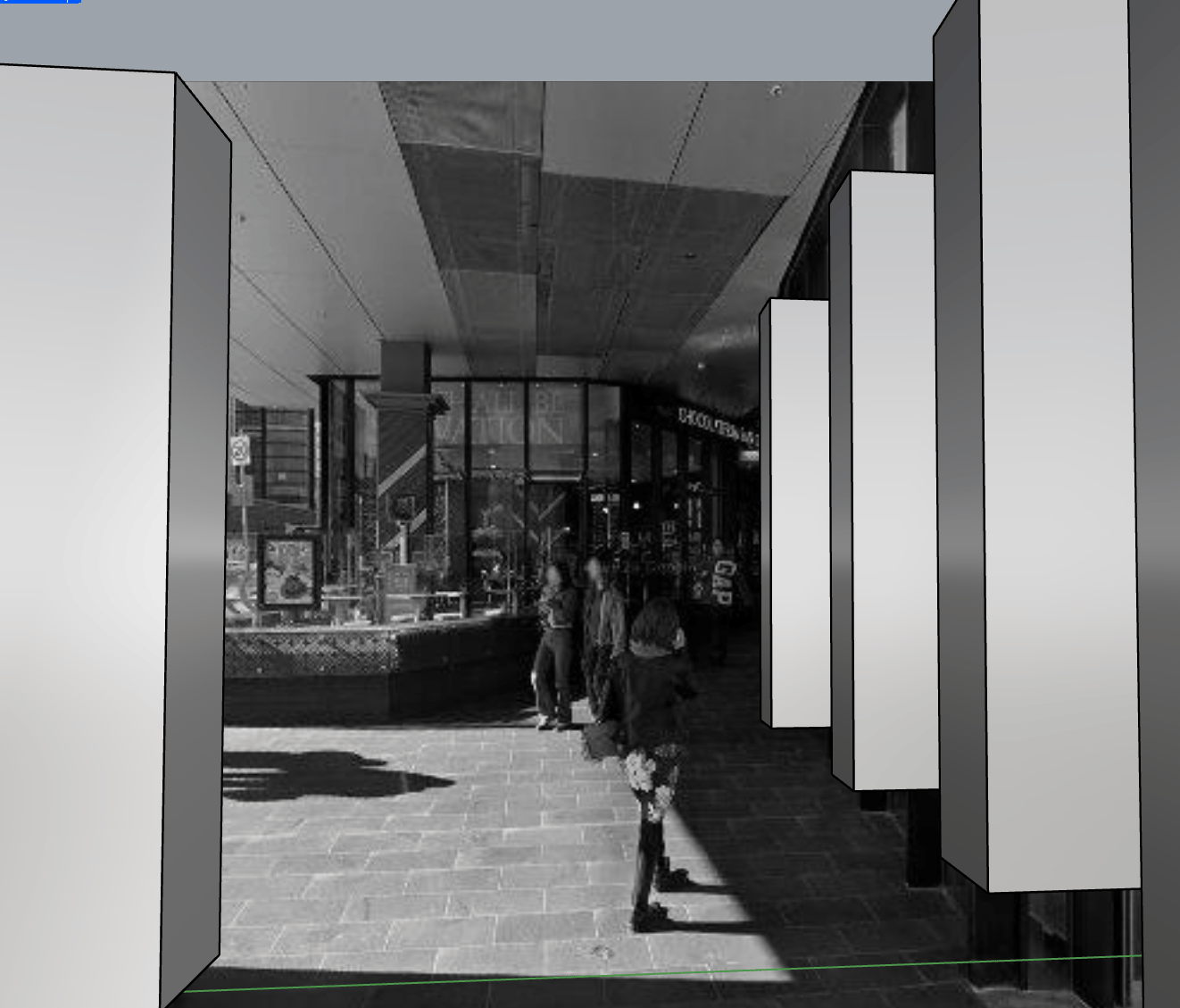

Streetview image as Rhino viewport background with massing model

​
9. Generate 3D environments with Marble

For immersive site mockups, generate a 3D model from a Streetview image using Marble Mini:
  1. Add a Marble Mini node to the canvas
  2. Connect a Streetview image
  3. Optionally write a prompt to guide content not visible in the input
  4. Run. Takes about 30 seconds for a Gaussian splat

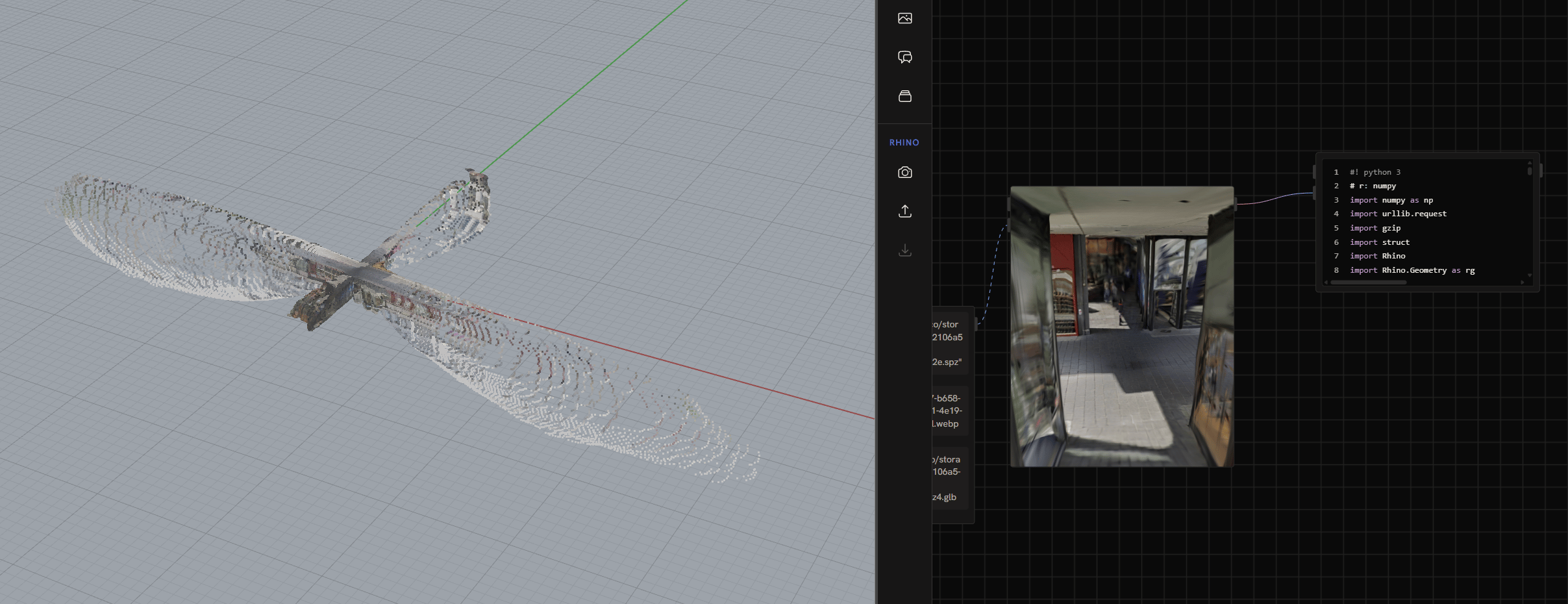

Marble 3D Gaussian splat from Streetview
Rhino doesn’t have a native splat viewer, but you can vibe-code a Python script that converts the .spz format to a coloured pointcloud:
  1. Grab the SPZ format spec markdown
  2. Prompt Opus: We have a splat file in spz format. Write a Python script that converts this to a coloured pointcloud we can render in Rhino. The reference spec is below. (paste the spec)
  3. Iterate on errors until it works

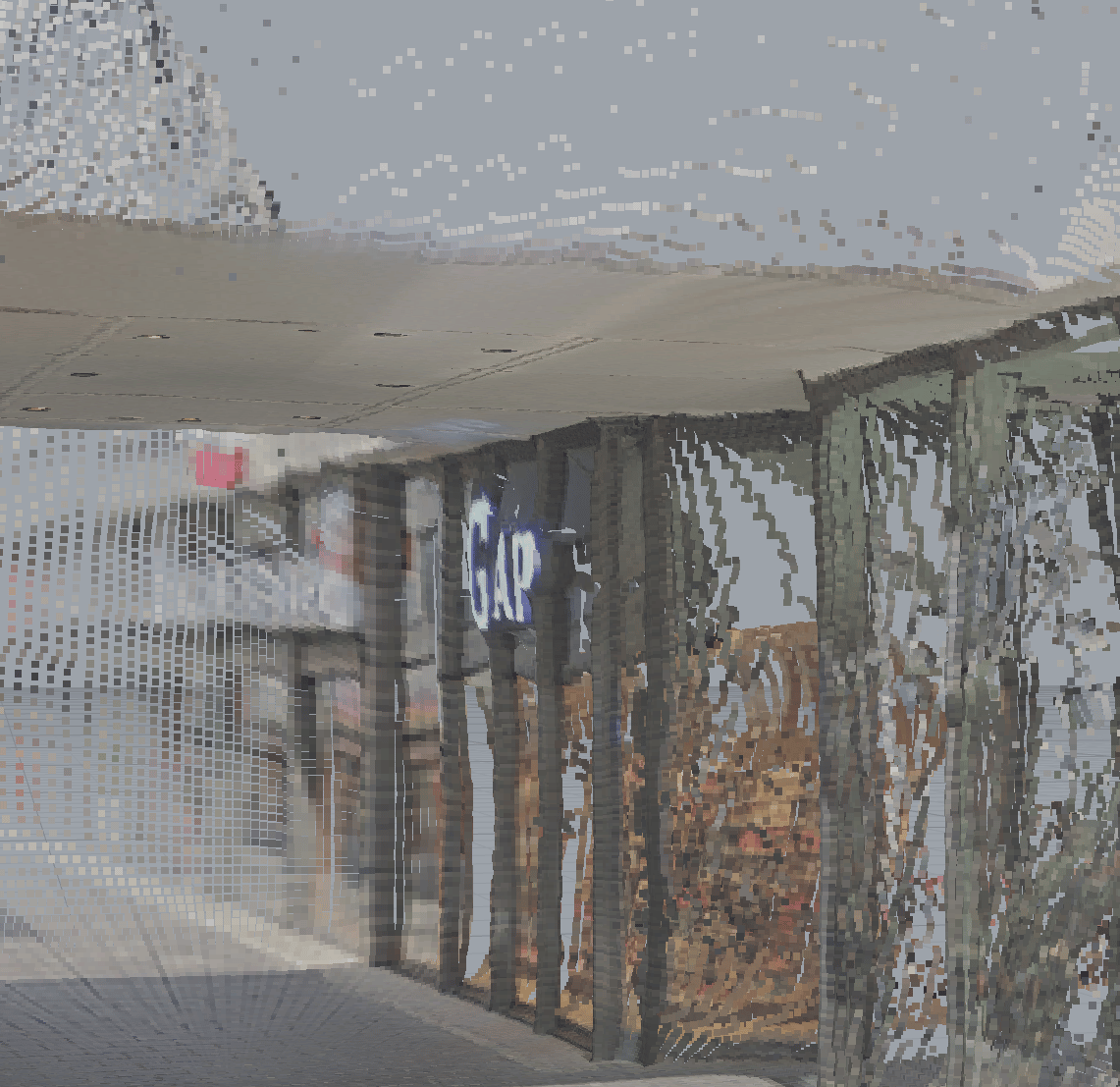

Pointcloud rendered in Rhino viewport
You can prompt Opus further to render quads aligned to the splats:

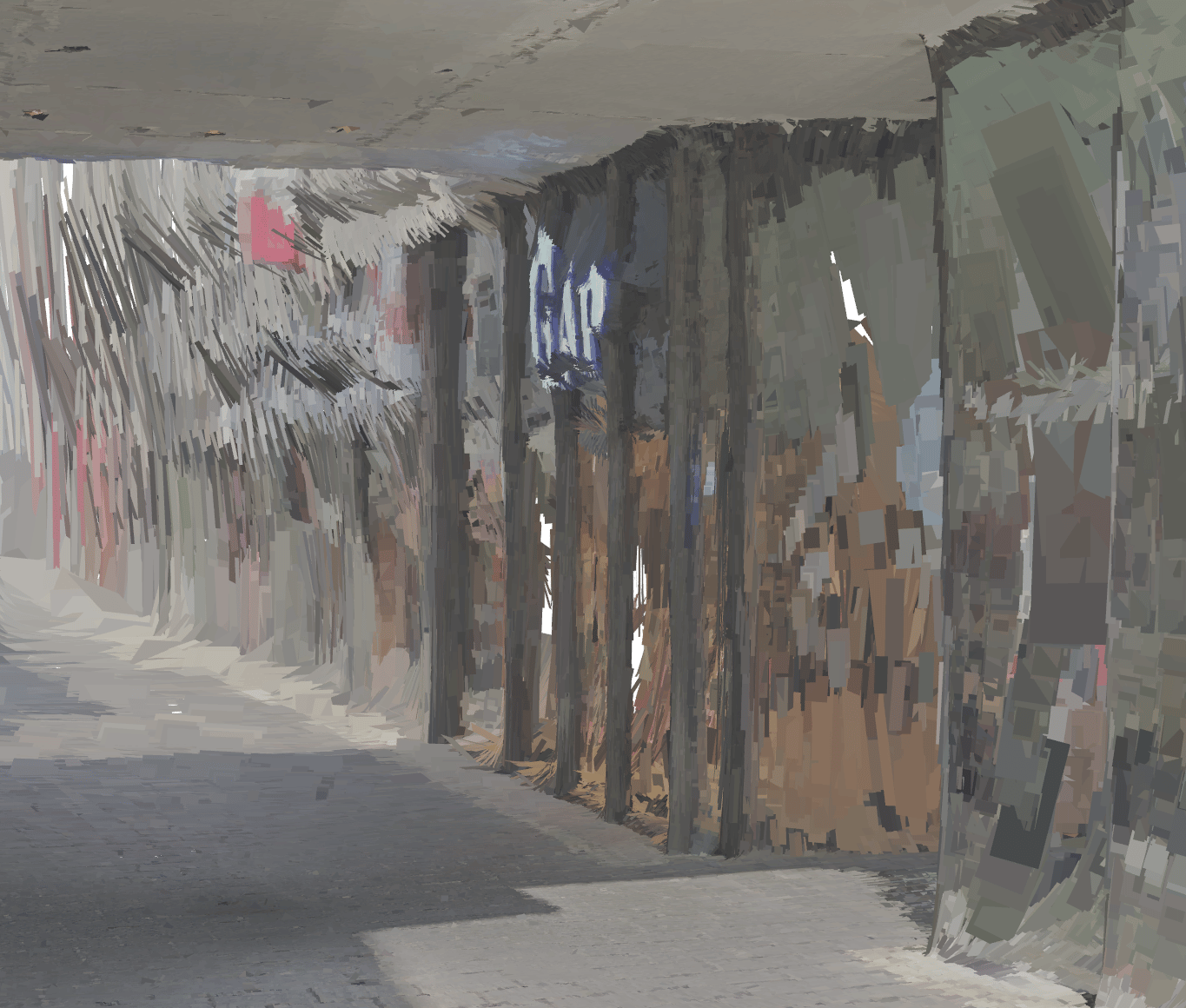

Splat quads in Rhino

​
10. Build a Places API component

Streetview is one source. Places is another, useful for “what’s near this site?” queries (parks, schools, transit stops).
  1. Enable Places API in Google Cloud
  2. Add https://places.googleapis.com to the allowed origins of your streetview secret (or create a new secret)
  3. Grab the Nearby Search docs and click “Copy page to markdown”
  4. Prompt the chat agent: Create a JavaScript component that fetches place information using the Places API: (paste the markdown)

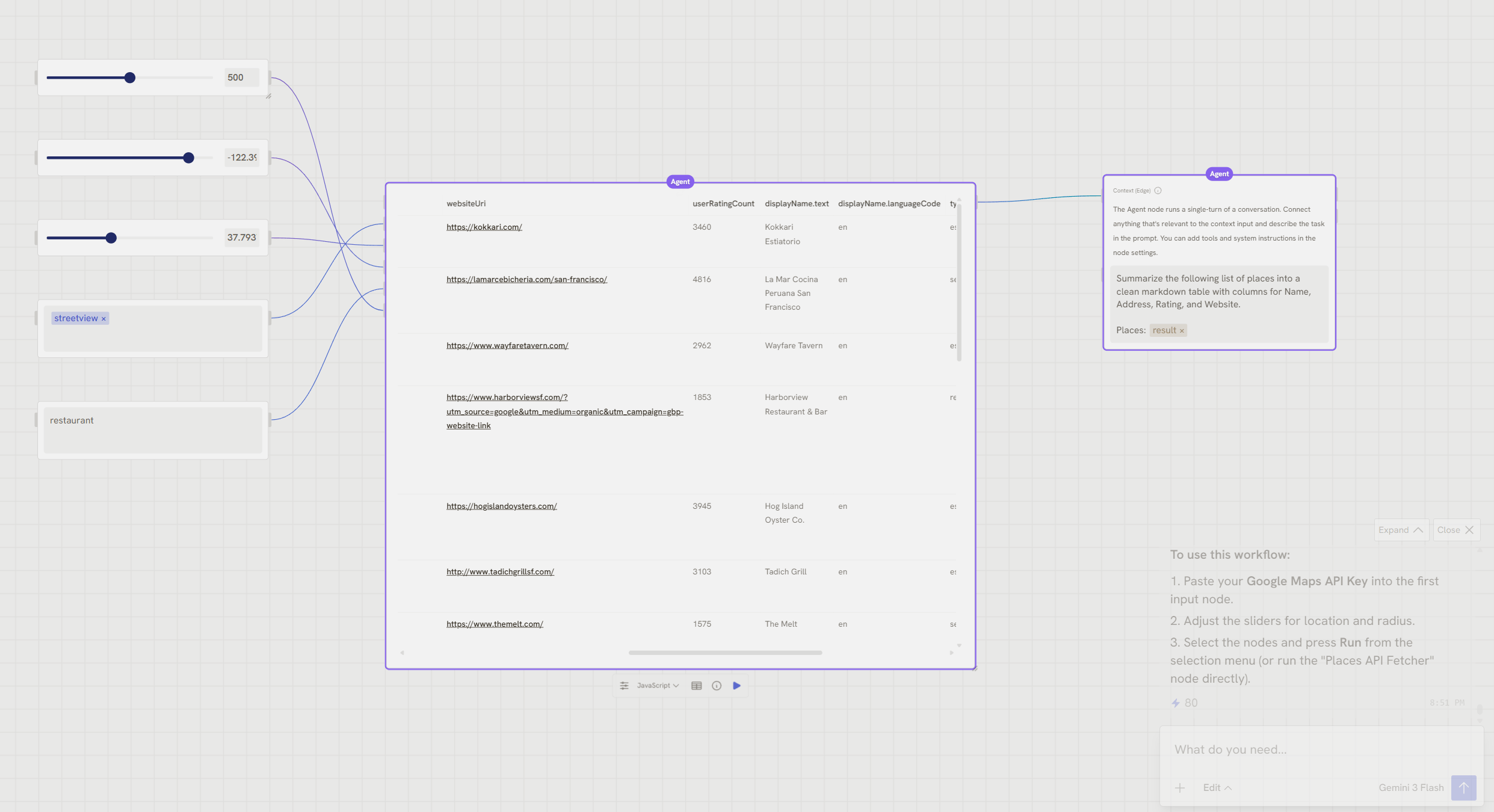

Places API component returning nearby places
Connect the Places output to an Agent node for a summary:

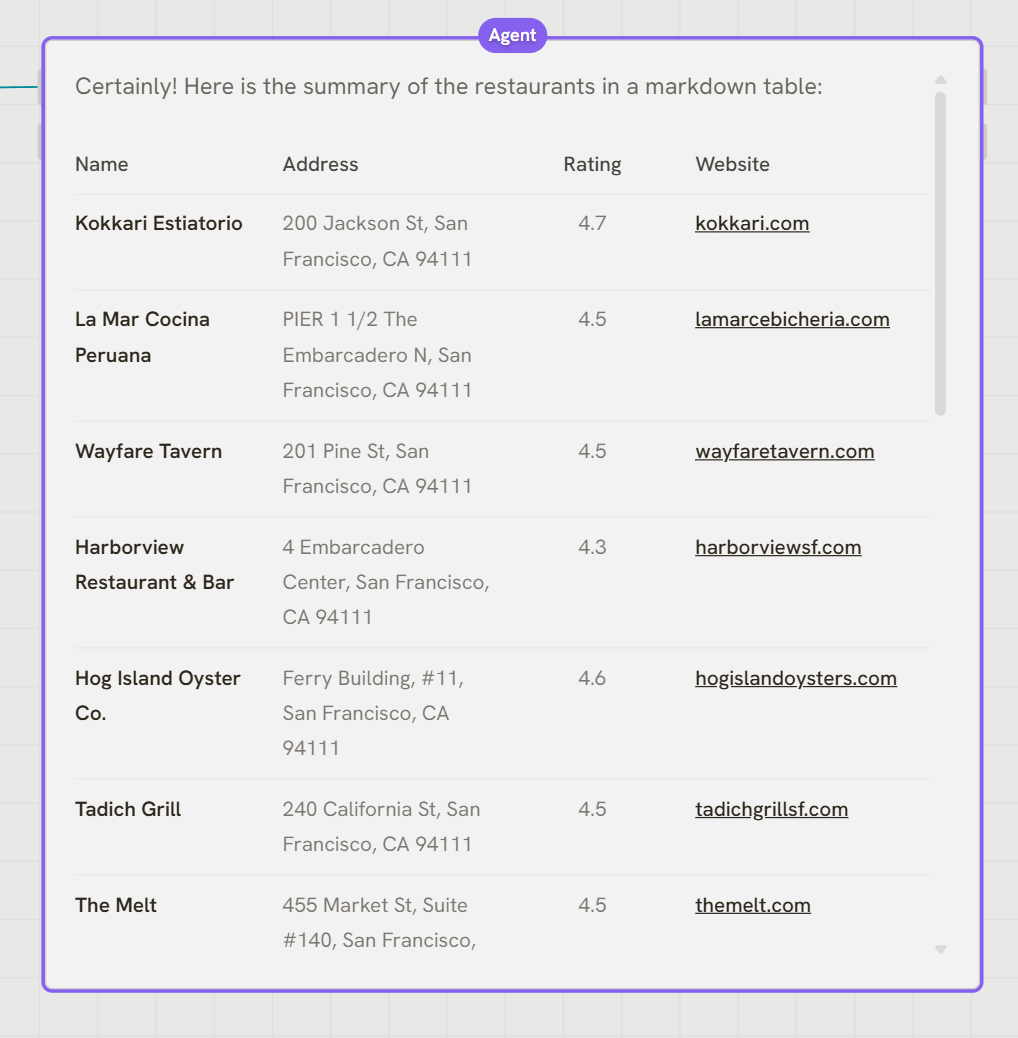

Agent summarising Places API output
Watch out when the Agent uses both referenced parameters AND edge inputs. In the table-summary example, the table can end up injected into the prompt AND the message context. Double-coverage. Pick one.

​
11. Publish the Places workflow as a tool

The real power is letting an agent call this directly. To do that, publish your Places workflow as a Tool that exposes address, type, and radius as parameters while keeping the API key internal. First, add a Geocoding step so users can pass an address instead of lat/long. Enable Geocoding API, then ask the agent to add a node that converts addresses to coordinates:

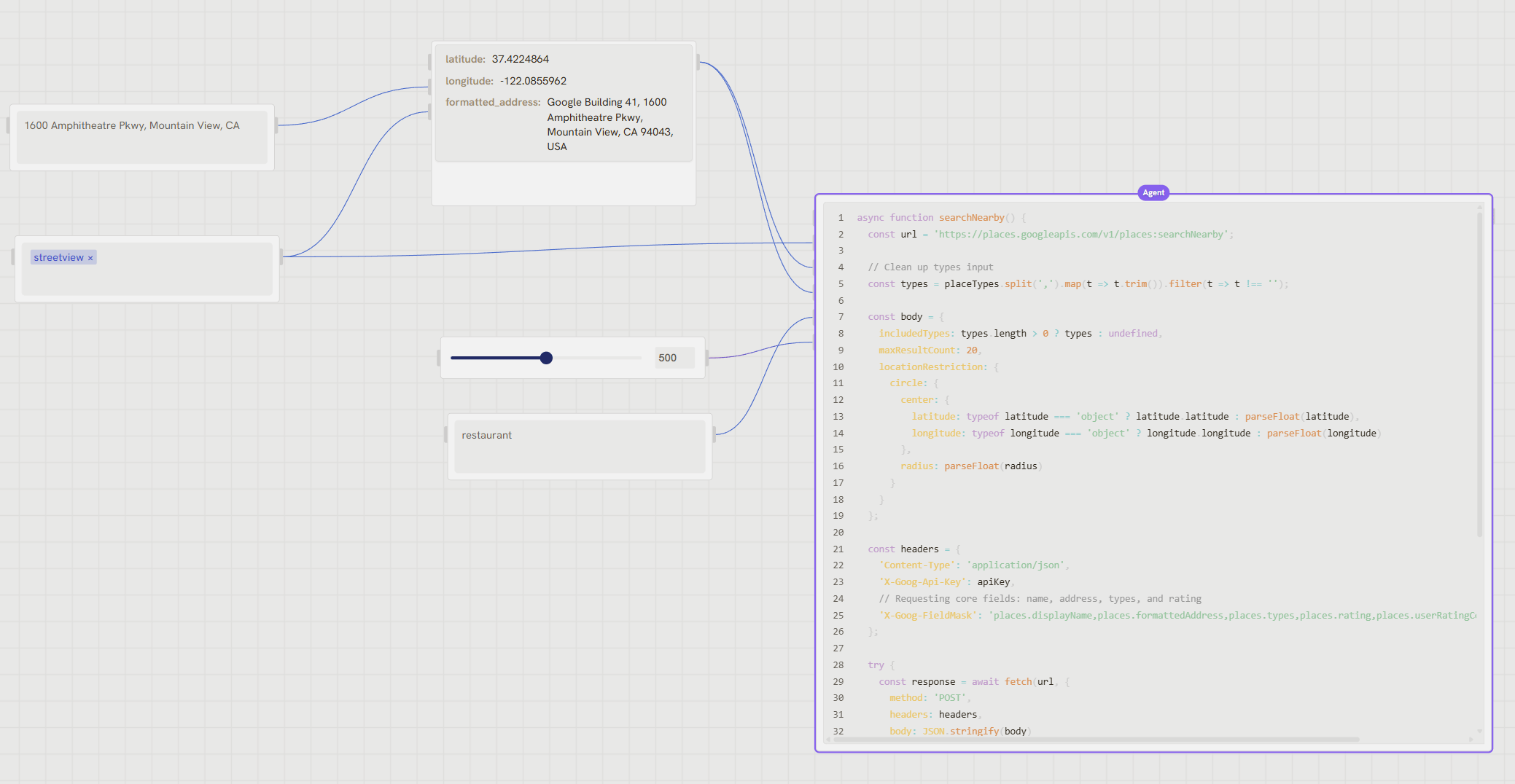

Geocoding node converting address to lat/long
Then publish:
  1. Open menu → Preview App
  2. Give it a name and a strong description (the agent reads this to decide when to use it):
Fetches nearby place information using the Google Places API. Takes an address, radius and place type as input and returns place information as JSON.
  1. Add the address, radius, and type as inputs (with descriptions)
  2. Add the places table as the output

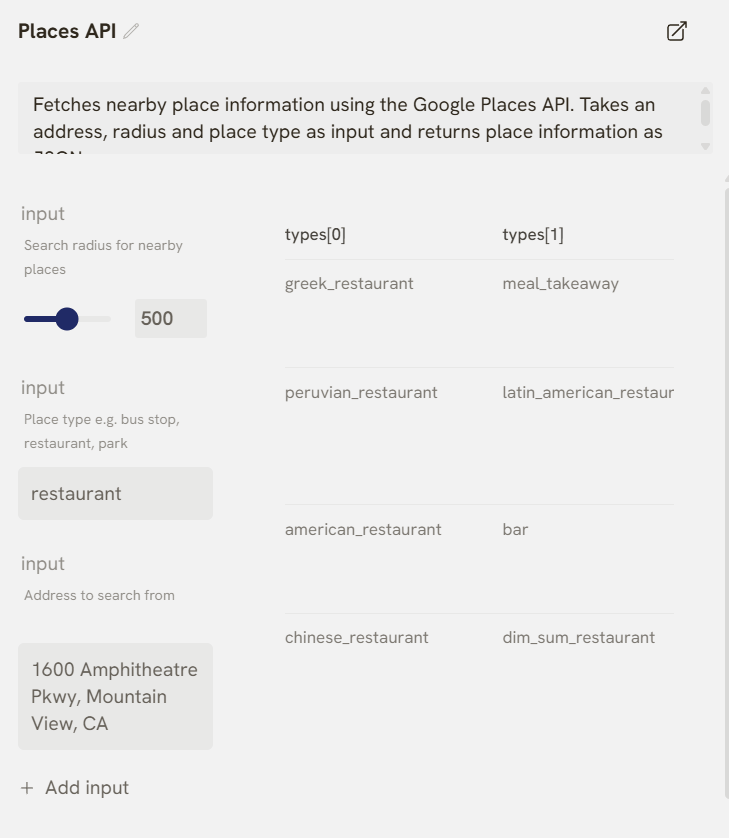

Preview of the published Places tool
  1. Click Publish V1
For more on publishing patterns, see Tools, Apps, and Libraries.

​
12. Add the tool to a library

For an agent to use your tool it has to be in an installed library:
  1. Click Workflows in the editor drawer
  2. Click + to create a new folder, name it Google APIs
  3. Drag your Places workflow into the folder
  4. Right-click the folder and choose Add to Nodes
Google APIs library installed
The folder turns blue. Tools inside it are now available to the chat agent and searchable in the node picker.

​
13. Use the tool in a chat

Create a new workflow (you can’t use a tool inside its own workflow). Click + in the chat, Tools, select the Places tool. Now ask:
How many parks are near 429 Rae Street Fitzroy North VIC 3068?

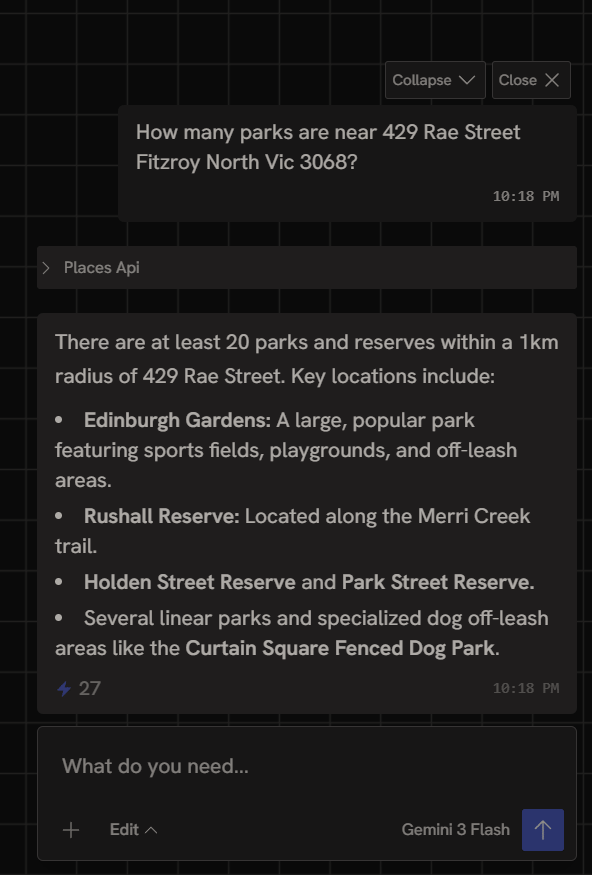

Agent using the Places tool to answer a query
The agent geocodes the address, calls your Places tool, parses the response, and answers in plain language.

​
14. Plug in a third-party planning API

The same pattern applies to any API. As an example, here’s a planning data API for Western Australia:
  1. Add the API key as a secret named corbcode, with allowed origin https://townplanning-app.salmonflower-34e8b60d.australiaeast.azurecontainerapps.io
  2. Add a Code node and reference the credential as ENV.corbcode
const response = await fetch('https://townplanning-app.salmonflower-34e8b60d.australiaeast.azurecontainerapps.io/api/chat', {
  method: 'POST',
  headers: {
    'Content-Type': 'application/json',
    'X-API-Key': ENV.corbcode
  },
  body: JSON.stringify({
    message: message,
    max_sources: parseInt(maxSources)
  })
});
return await response.json();
The response contains a natural-language summary plus a collection of source planning documents. You can publish this as a Tool the same way you did Places.

​
What you’ve built

A complete site research workspace:
  • Streetview fetcher (HTML and JavaScript versions)
  • Multi-address batch processing
  • Image analysis via the Agent node
  • 3D environment generation with Marble + custom Rhino import
  • Places API tool for nearby search
  • Planning API for natural-language queries
All composable. All callable from a chat agent. All extendable by the same pattern: get docs, ask the agent to build a component, secure the credentials, publish as a Tool.

​
